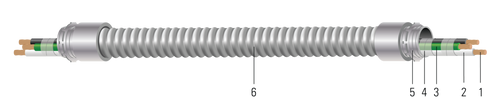

Southwire 14-3SOL Lite-Whip 3/8"FMC-RWS 6' Black/White/Green Lock-Nut 15 EA

• Conductor:Class B compressed stranded copper per ASTM B3 and ASTM B8
• Insulation:All phases are insulated with Polyvinyl Chloride with Nylon Sheath Type THHN/THWN
• Ground: Green insulated copper ground
• Binder:Binder tape bearing the print legend is wrapped around the cable assembly
• Connector:Zinc die-cast locknut or snap-in connector
• Armor:Steel Interlocked Armor

Standards & References

• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• UL 83 Thermoplastic Insulated Wires and Cables
• UL 1569 Metal-Clad Cables
• UL 1479 Standard for Safety Fire Tests of Penetration Firestops
• UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
• Buy American: Compliant with Buy American Requirements, found in 49 U.S.C. § 5323(j); specify “Made in the USA Only!” when ordering to ensure your project receives American made products.

Application & Features

Southwire EZ QUICK™ Modular Cable Assemblies are suitable for use as follows:

• Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
• Fished or embedded in plaster.
• Concealed or exposed installations.
• Environmental air-handling spaces per NEC 300.22 (C).
• Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
• Installation in cable tray and approved raceways.
• Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2)
• Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

Southwire EZ QUICK™ Modular Cable Assemblies - meets or exceeds the following requirements:

• UL Online Product Guide Info - Metal-Clad Cable (PJAZ) ( www.ul.com )
• Federal Specification A-A59544 (formerly J-C-30B)
• NFPA 70 (National Electrical Code), Article 330
• Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems
• REACH/RoHS-2 (Chemical Limit) Compliant

Southwire EZ QUICK™ Modular Cable Assemblies Features:

• Reduces installation costs up to 50% over pipe and wire.
• Lightweight aluminum armor--as much as 45% lighter than steel MC Cable.
• Better grounding performance than Type AC
• Pre-cut lengths eliminate on-site preparation and save installation and clean up time.
• Pre-stripped conductors increase jobsite safety
• UL Listed snap-in fittings applied to each end
• UL Classified 1, 2, and 3 hour Through Penetration Firestop Systems: W-J-3037, W-L-3110, W-L-3113, W-L-3117, W-L-3120, W-L-3121, W-L-3160, C-AJ-3115, C-AJ-3140, C-AJ-3142, C-AJ-3145, C-AJ-3173, C-AJ-3202, C-AJ-4065, C-AJ-4066, F-C-3038.
• Cable reverse wound on reel for ease of pulling and installation. When pulling from coils, pull from inside to ensure ease of installation.
• Anti-short bushings are not required for use with MC cable per the NEC and UL
